Our offer

Our offer

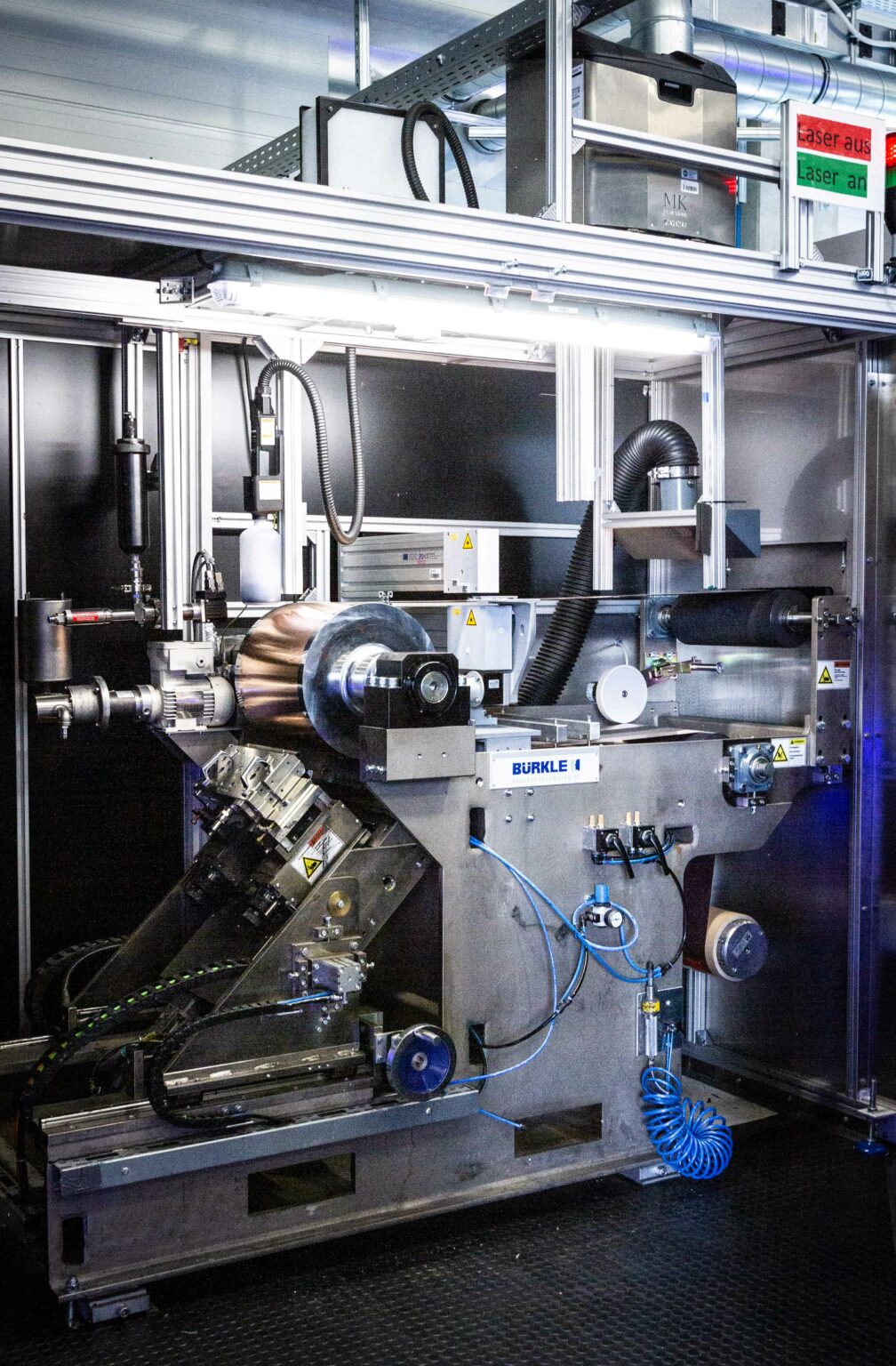

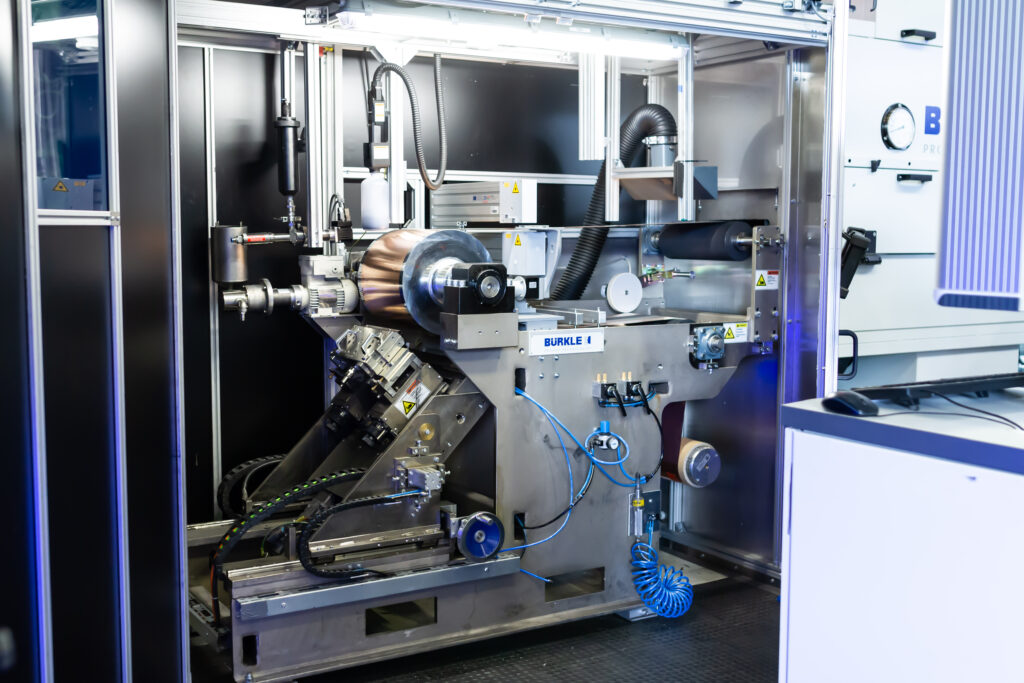

The film coating line can be used to coat current-conducting films for lithium-ion battery cells.

This includes measurements of relevant process parameters using numerous sensors and imaging test methods. This enables, for example, the experimental process validation of the electrode production of new battery cell technologies (plant poster; PDF).

Your Contact

Your Contact

Kontaktfotos_ELAB_Simon_V_web

Simon Voß, M. Sc.
s.voss@pem.rwth-aachen.de
Phone: +49 171 2895536

Data

Data

  • Offline system with integrated coil winding units and drying oven (up to 150 °C)

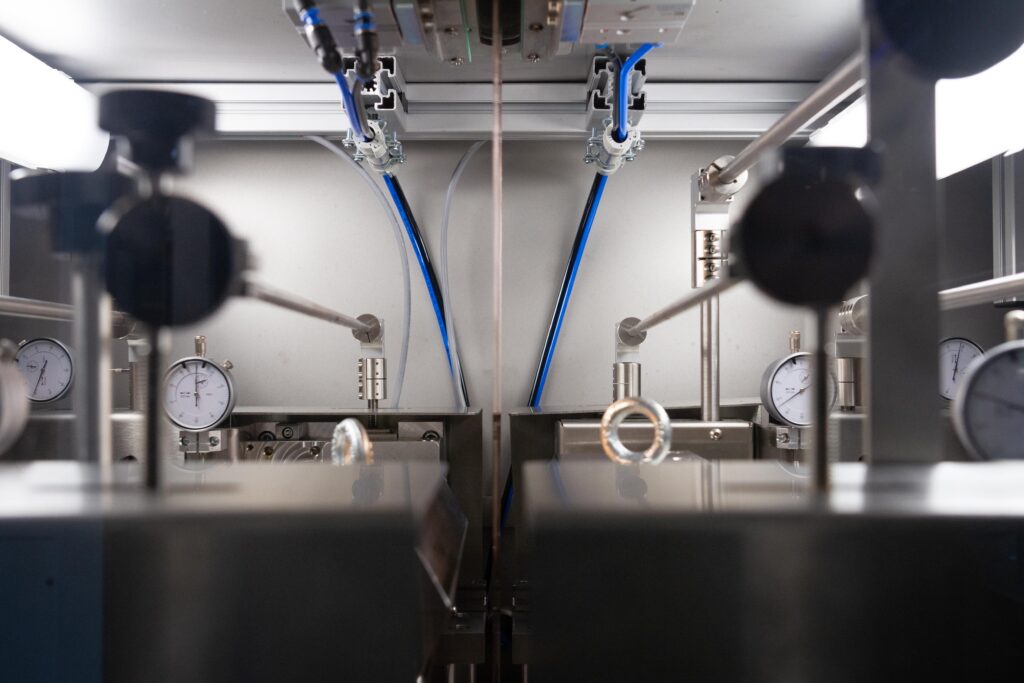

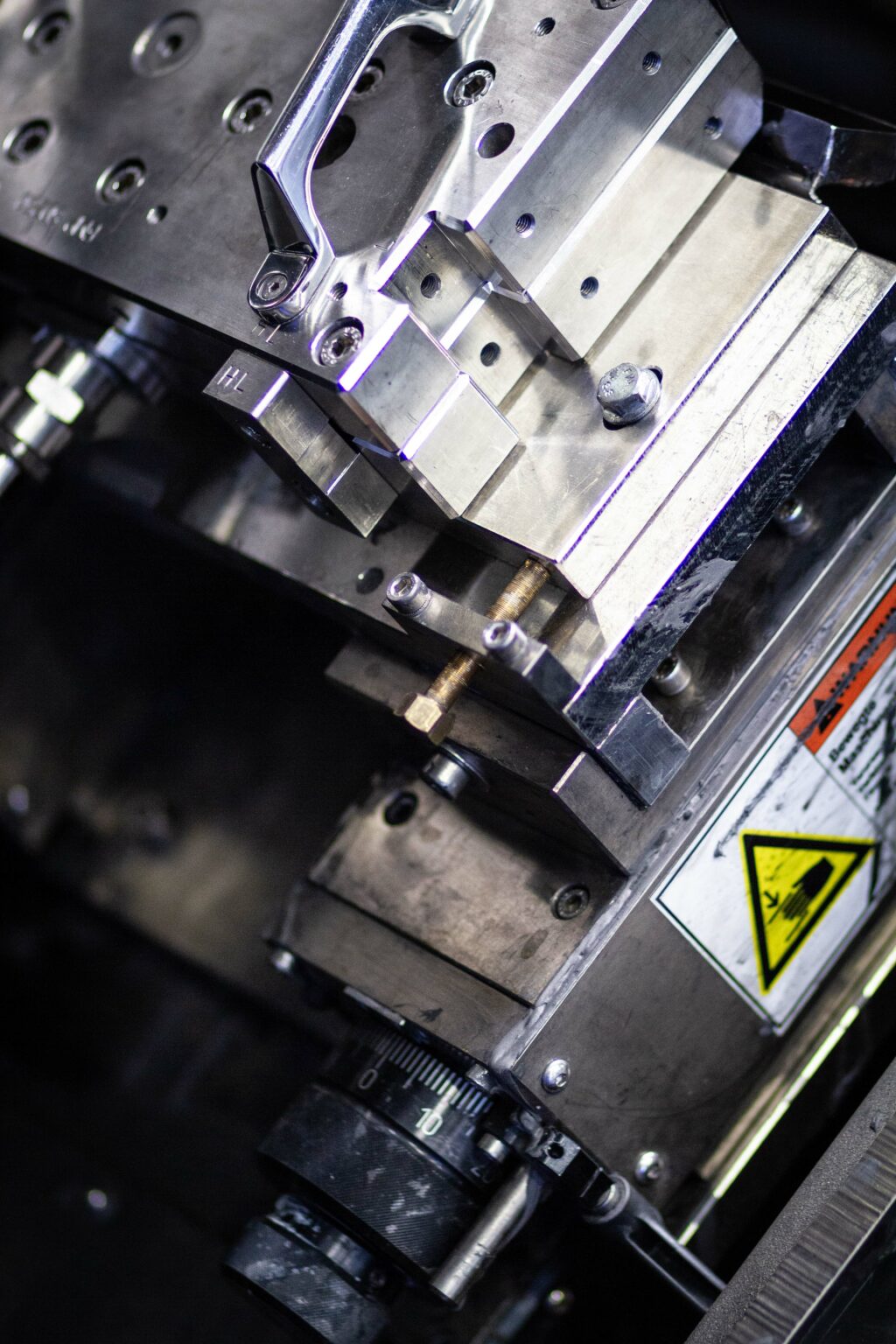

  • Resource-saving coating with a precision slot nozzle:
  • Maximum coating width: 250 mm
  • Maximum film width: 300 mm
  • Wet film thickness distribution: +/- 1%
  • Maximum coating speed: 4m/min

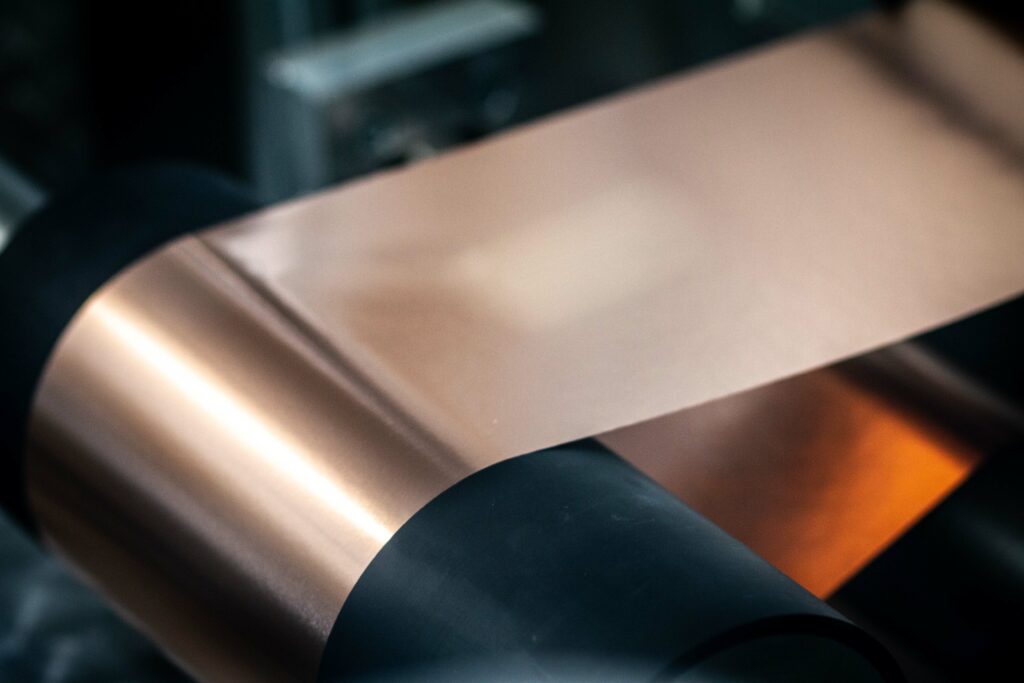

  • Copper/aluminium foil

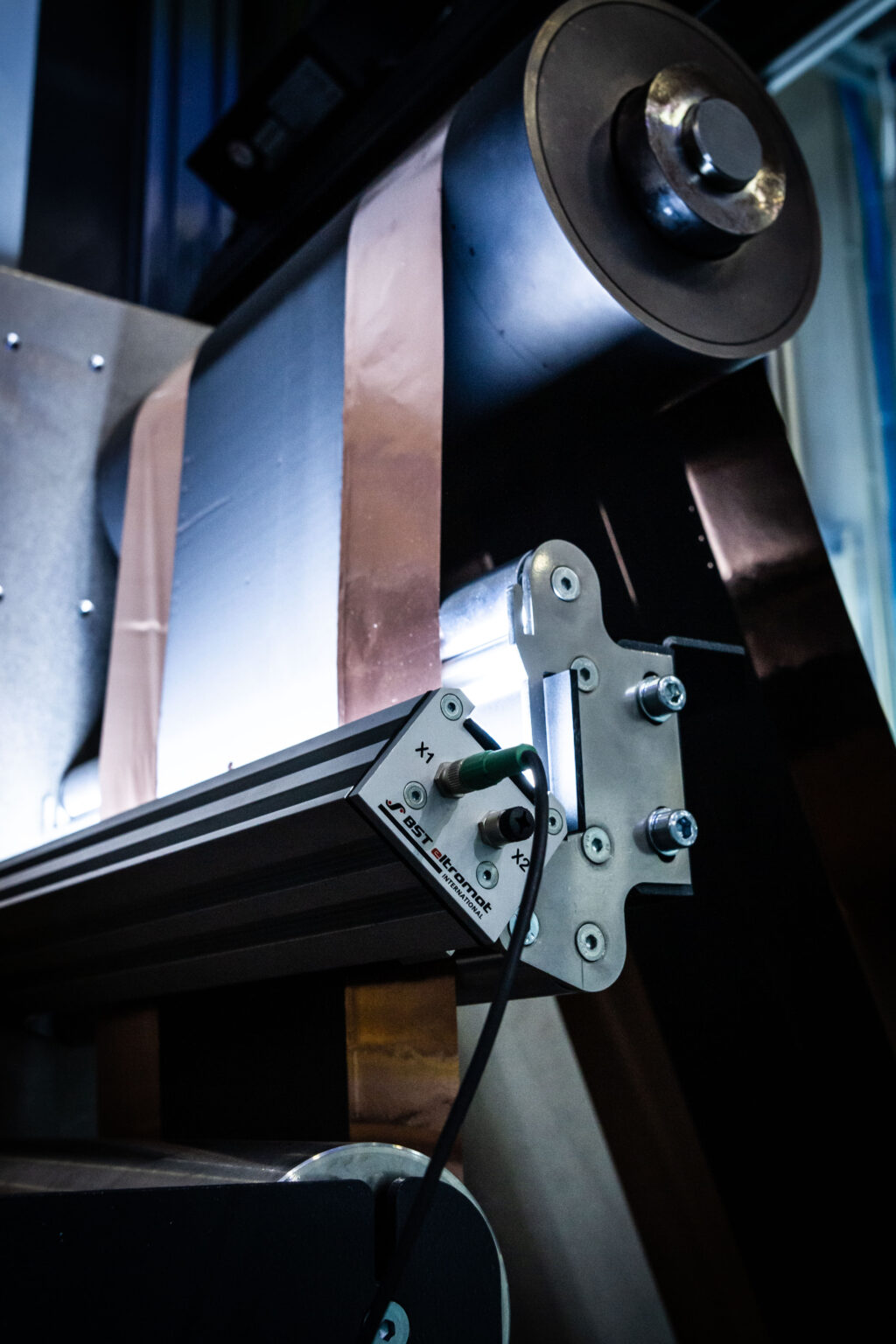

  • VISION system for web edge control
  • Automatic web tension control by force transducer

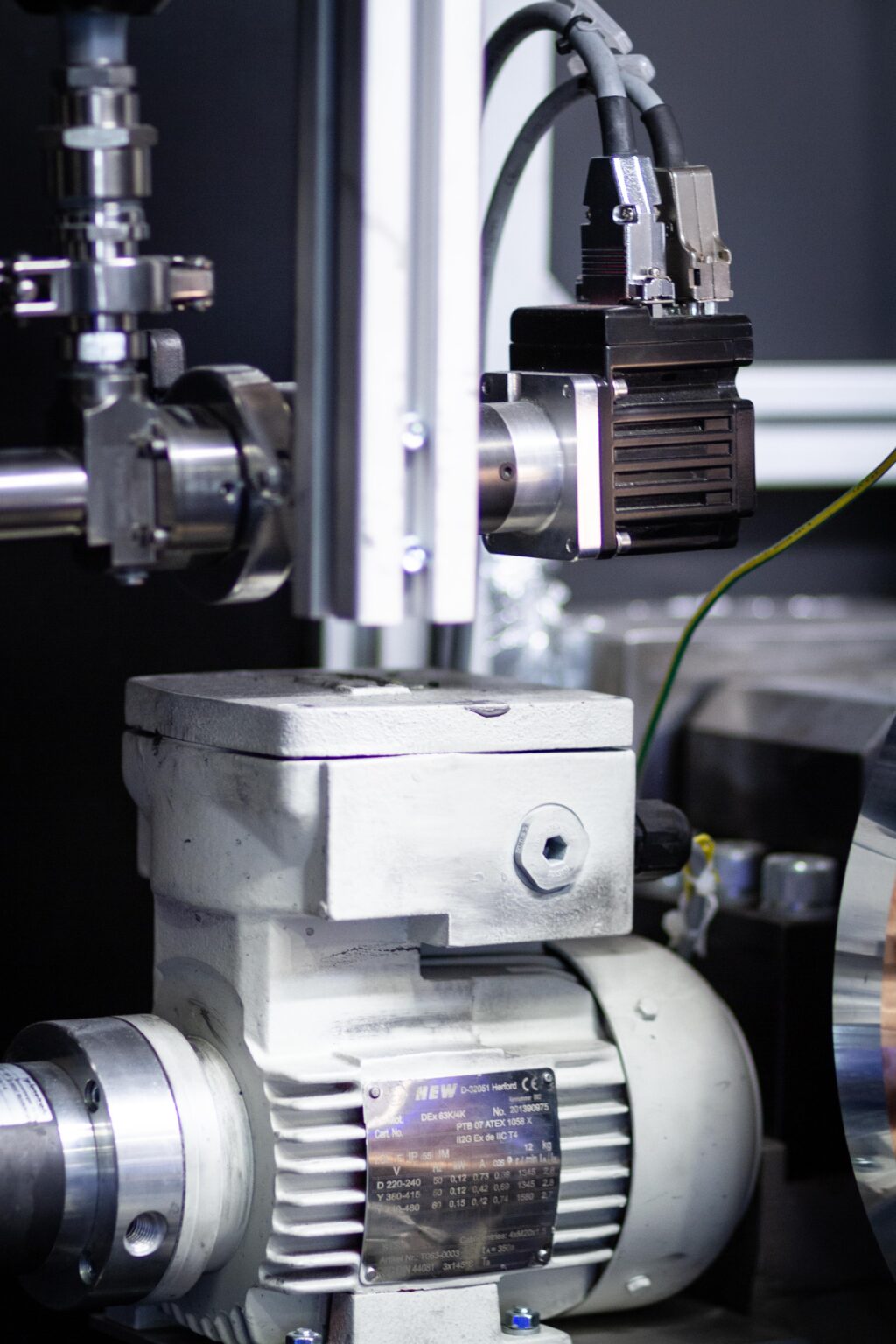

  • Winding station with servo drive
  • Intermittent coating tool for intermittent coating

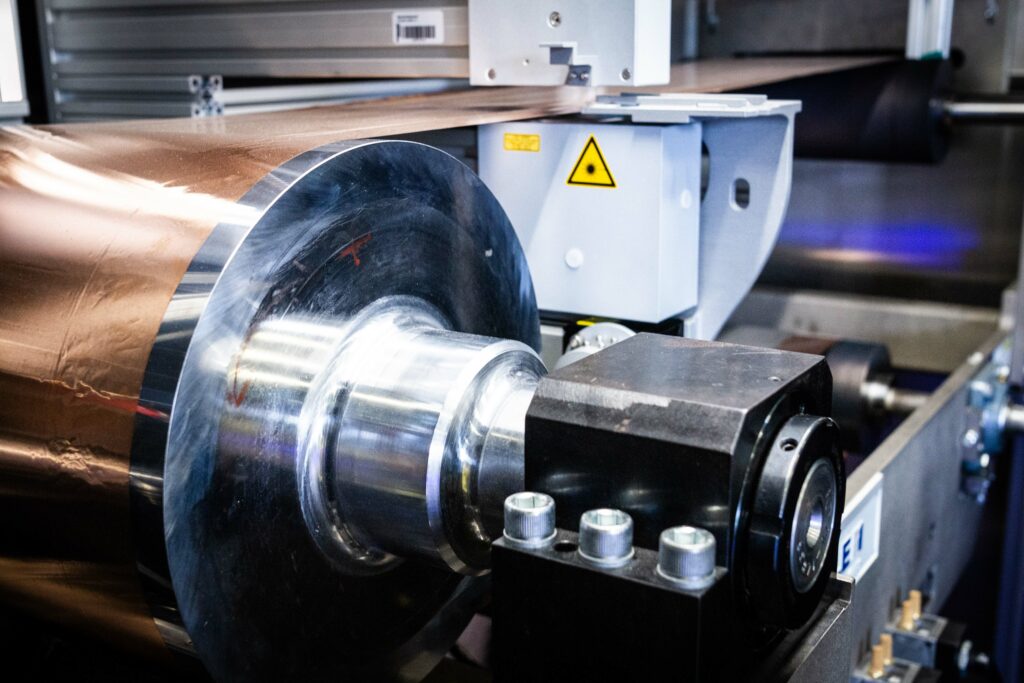

  • Counter roll with asynchronous drive and very high concentricity accuracy

Examples of our research expertise

Examples of our research expertise

  • Cross-distribution accuracy on the coated electrode
  • Coating homogeneity
  • Surface quality (micro height profile)
  • Coating edge geometry (line accuracy and thickness/streaks)
  • Adhesiveness (film to material/particles in material)
  • Reduction of drying time
  • Coating thickness influences on quality requirements
